Network Address-Name Resolution

Network Address-Name Resolution is a task that allows for configuration of default gateway, routing and DNS servers

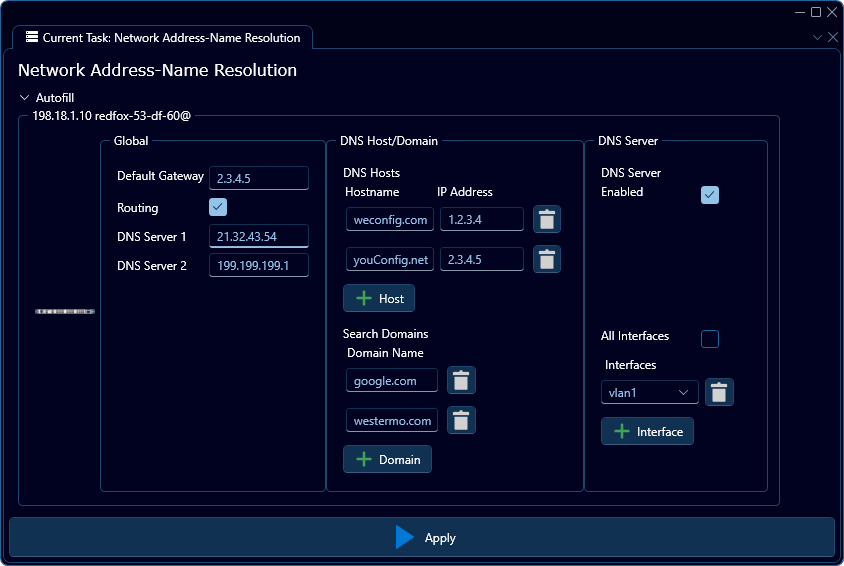

Interface components​

Autofill​

This collapsed menu contains a group of options for quickly replicating configuration across all selected devices. Default gateway, routing and DNS server 1 / 2 can be set therein and then filled to all selected devices.

Device view​

Below the autofill section a list of selected devices will appear, with their configuration options presented in three groups. The first group "Global" allows individual device configuration of the same properties as the Autofill section.

The second group "DNS Host/Domain" allows for device specific configuration of DNS Hosts and search domains to pass DNS request forwards to. Each device may have multiple of both options.

The third and final group "DNS Server" allows the user to configure the device to act as a DNS server, and to specify which interfaces that will be part of said server.
