Media Redundancy Protocol (MRP)
MRP is a task that allows for configuration of Media Redundancy Protocol rings in the network.

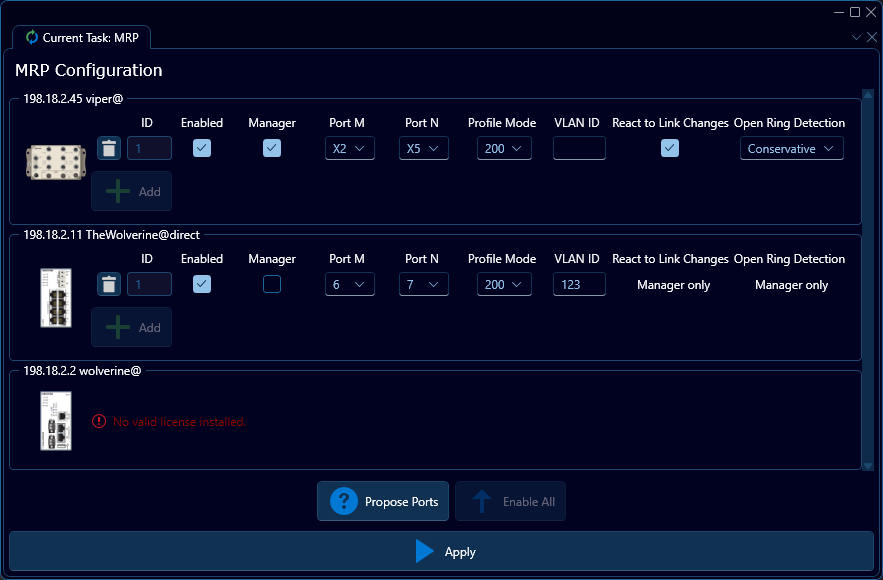

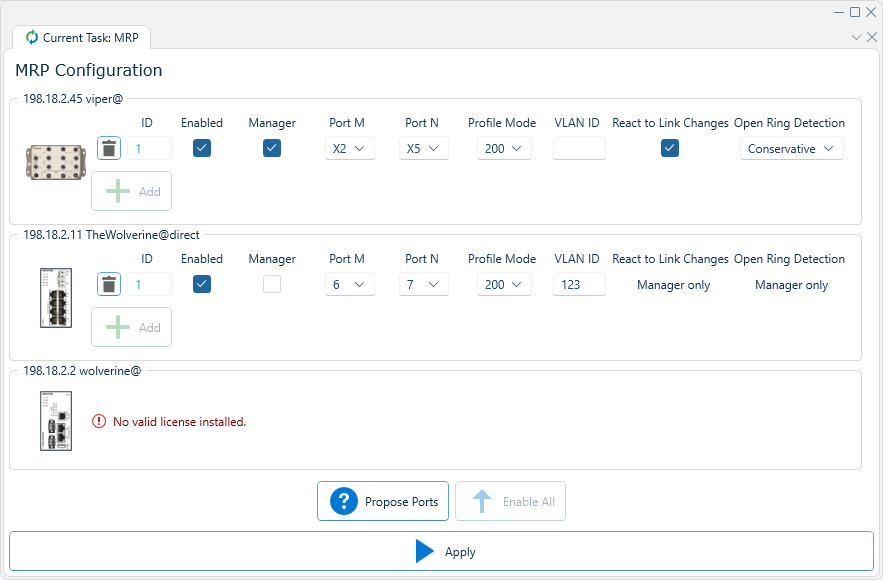

Interface Components
For each selected device, if the device supports / is licensed for MRP configuration, you will be presented with the following options:
| Option | Description |
|---|---|
| ID | MRP Ring ID |
| Enabled | Whether or not this MRP ring is active on this device |
| Manager | Whether or not this device is the manager for this MRP ring |
| Port M | Which port on the device is considered the first element in the port-pair for this MRP ring |
| Port N | Which port on the device is considered the first element in the port-pair for this MRP ring |
| Profile Mode | The maximum recovery time profile for this MRP ring |
| VLAN ID | Which VLAN to encapsulate the MRP rings signaling on, if any |
| React to link changes | Whether or not the MRP manager should react to link change frames |
| Open Ring detection | Whether or not the MRP manager should be more careful in detecting open rings |
info
For devices running WeOS 5.11 and newer, up to two ring configurations is supported. Although at most one may configure the device as an MRP client.
Additionally, you may click "Propose Ports" at the bottom of the interface to have suitable MRP ports suggested for you (if any exist).
