Firewall
Firewall is a licensed task that allows for configuration of firewall rules on selected devices. The current set of devices support by this task is WeOS 4 and WeOS 5 devices.
Interface Components

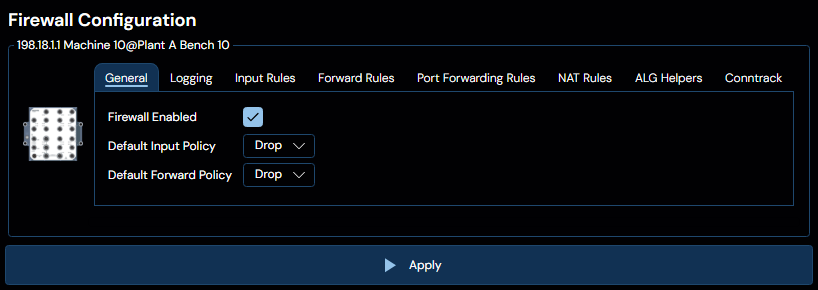

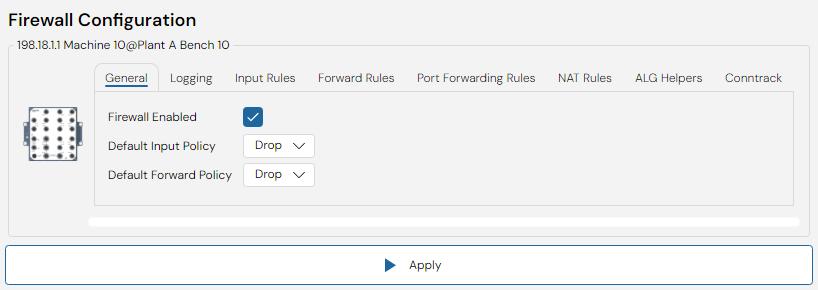

Depicted above you can observe how the interface might appears for a selection of two WeOS 5 devices and one WeOS 4 device. Where the configuration options for each device is divided into several tabs with the following contents:
What features are available depends on the WeOS version, and whether or not the device is an Extended device.
| Tab | Description | WeOS 4/5 Standard | WeOS 4 Extended | WeOS 5 Extended |
|---|---|---|---|---|
| General | Enable / Disable firewall, and default policy | Yes | Yes | Yes |
| Logging | Enable / Disable logging, and configure rate limit on logs | Yes | Yes | Yes |
| Input Rules | Rules for incoming packets directed to the device | Yes | Yes | Yes |
| Forward Rules | Rules for incoming packets not directed to the device | No | Yes | Yes |
| DPI Filter Rules | Rules for incoming packets with a larger scope | No | Yes | No |
| Port Forwarding Rules | Expose internal devices via specific ports | No | Yes | Yes |
| NAT Rules | Rules for Network Address Translation | No | Yes | Yes |

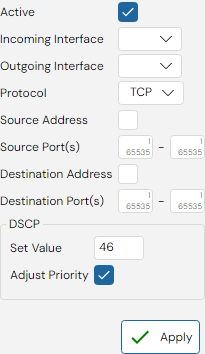

| Modifier Rules | Rules for modifying the IP header in routed traffic | No | Yes | No |

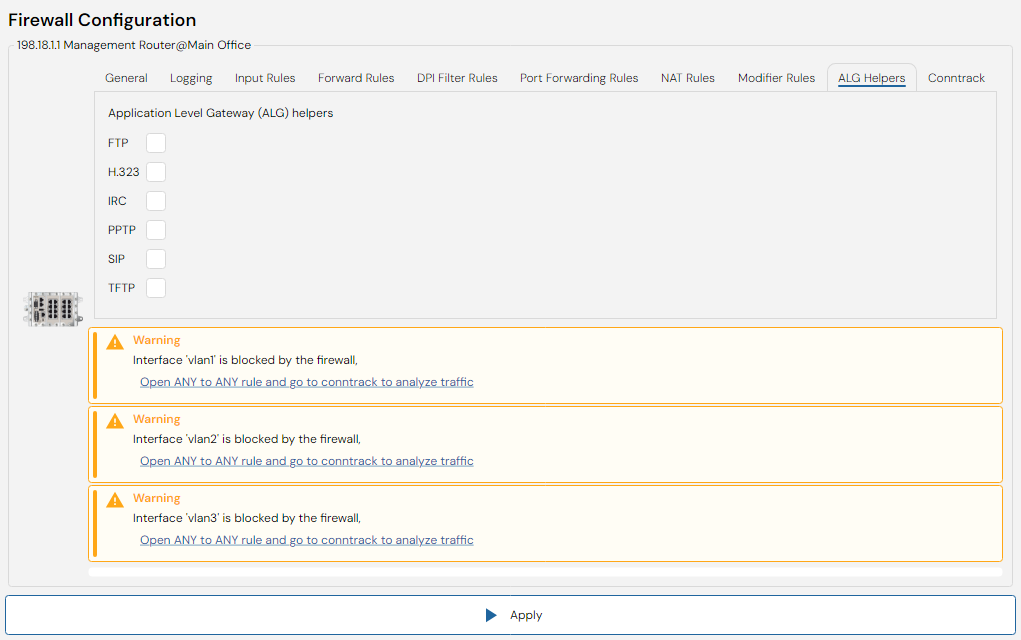

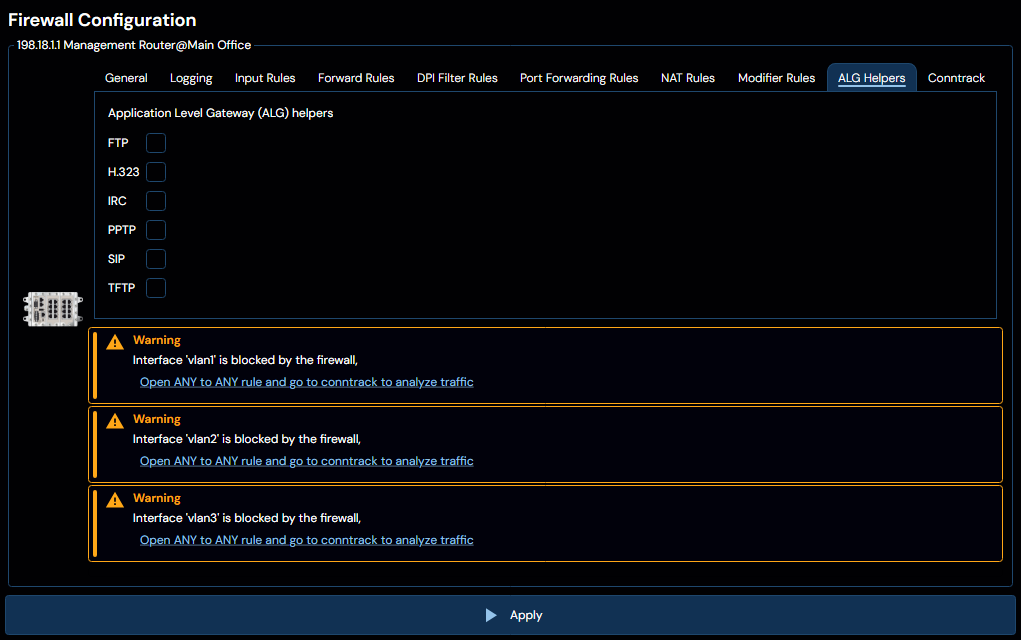

| ALG Helpers | Shorthand Rules for specific protocols | No | Yes | Yes |

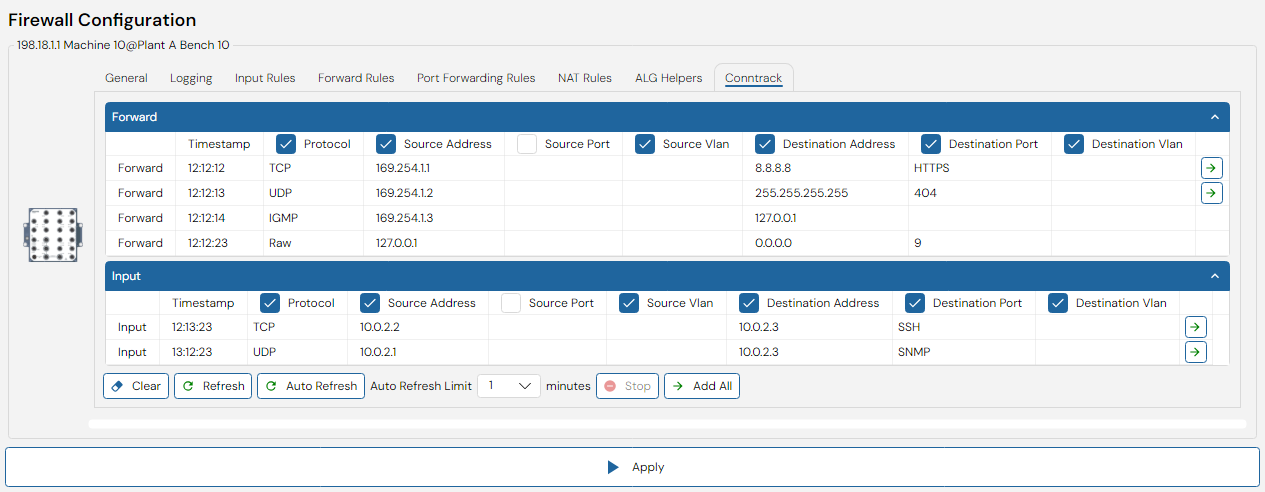

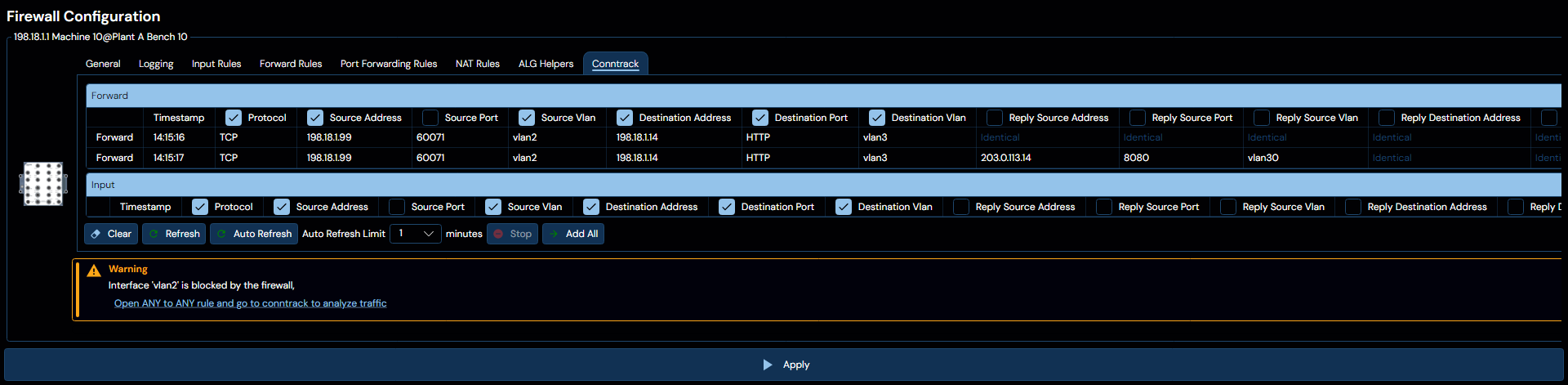

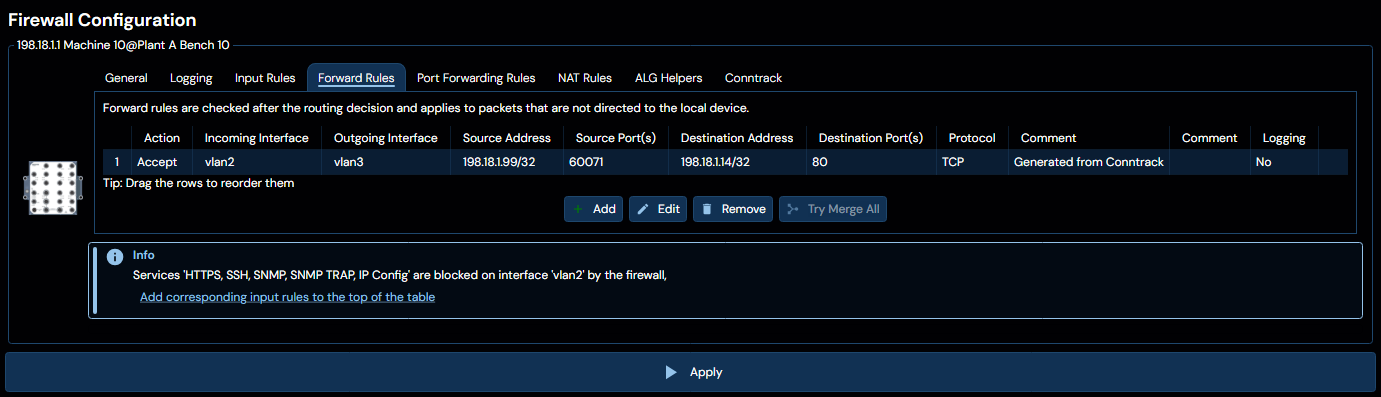

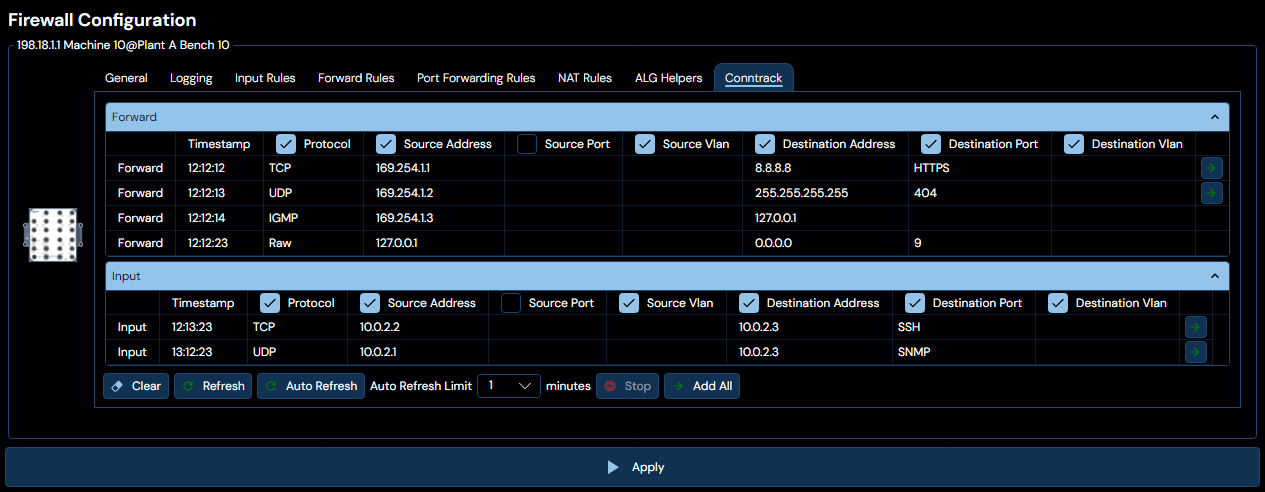

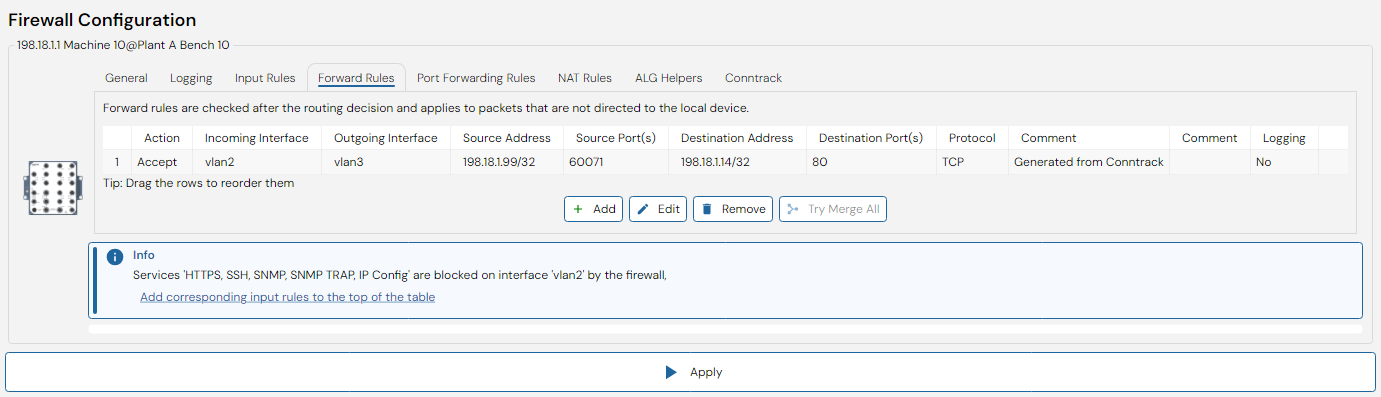

| Conntrack | Maintains information about all incoming and outgoing connections | No | Yes | Yes |
General

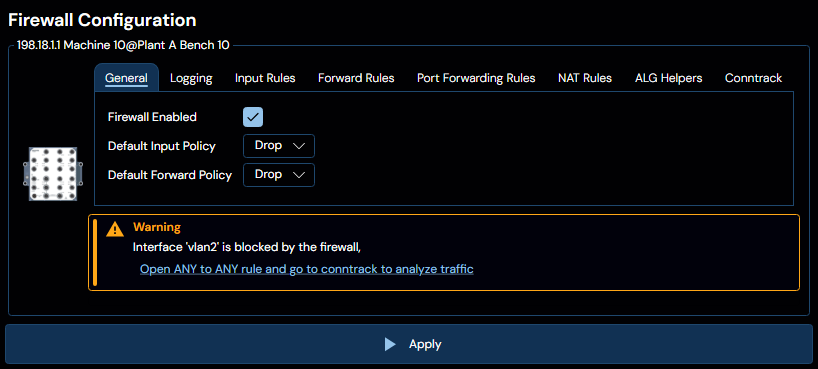

The general tab allows for enabling or disabling the firewall on the device, and setting the default policy for the firewall. The default policy can be set to either ACCEPT or DROP. The default policy is the action that the firewall will take if no rules are matched.
For WeOS 5 devices, the firewall can be disabled and rules can still be set, but they will not be enforced until the firewall is enabled.
Default Forward Policy is only available on Extended devices.
Admonitions

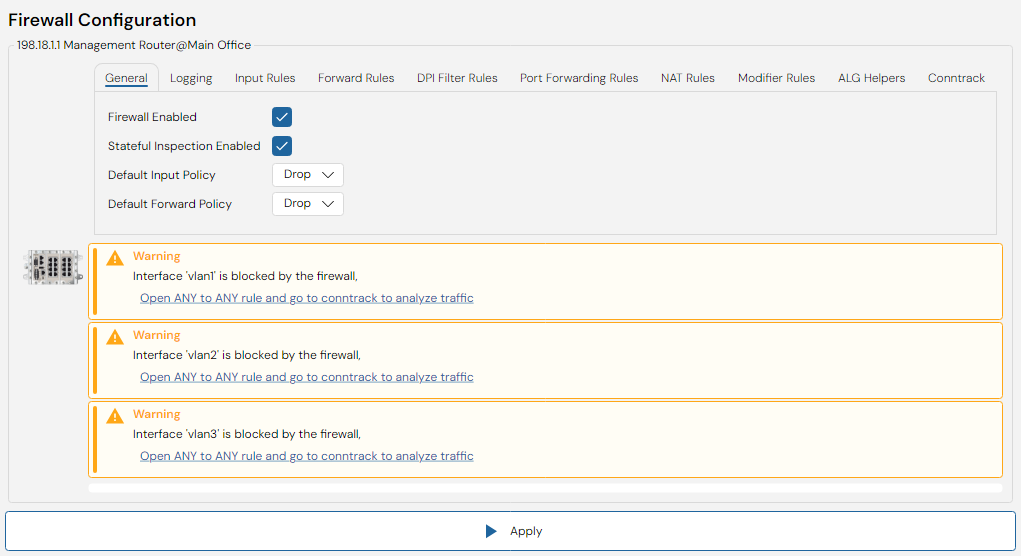

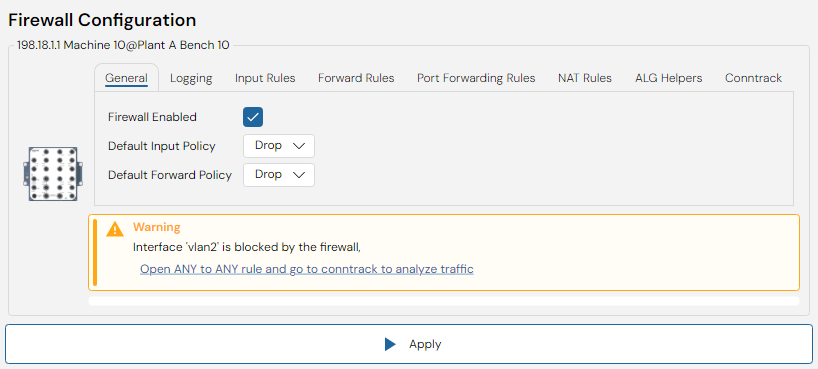

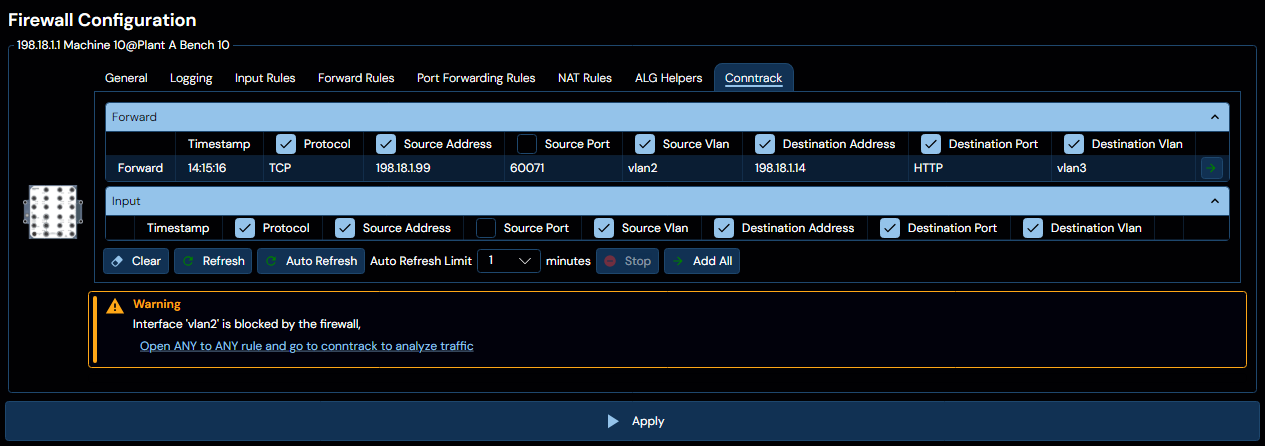

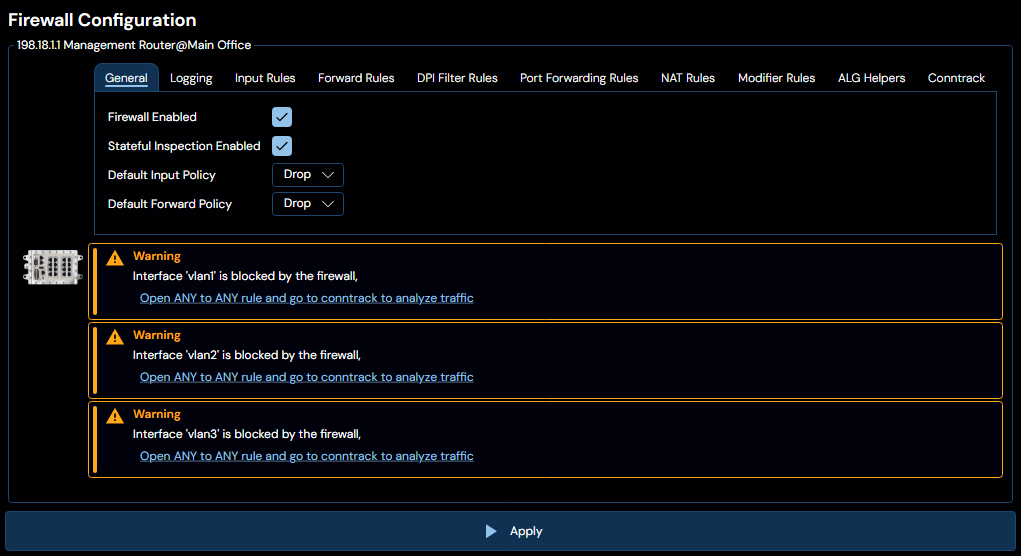

As depicted in the image above, the firewall configuration task may display certain admonitions to the user, depending on the current configuration of the device. These admonitions are hints or warnings that inform the user about potential issues with the current configuration, either in terms of functionality or security posture.
Some examples of admonitions that may appear are:
- Default policy issues: If the default policy is set to
ACCEPT, an admonition may appear warning the user about the potential security risks of this configuration. - Unlimited logging: If logging is enabled with no rate limit, an admonition may appear warning the user about the potential for denial-of-service attacks.
- VLAN X is blocked: If there are VLANs that are completely blocked by the current firewall rules, an admonition may appear listing those VLANs.
- Service Y is unreachable on VLAN X: If there are services on the device that are unreachable due to the current firewall rules, an admonition may appear listing those services.
WeOS 4
For WeOS 4 devices, the firewall must be enabled to be able to set any rules.
WeOS 4 devices also have the option to set Stateful Inspection, which is an ability to drop packets of invalid state.
Logging

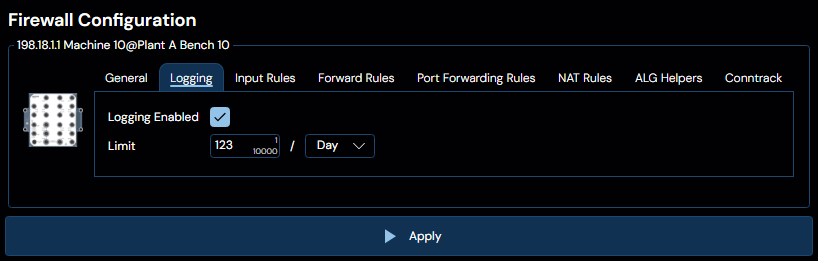

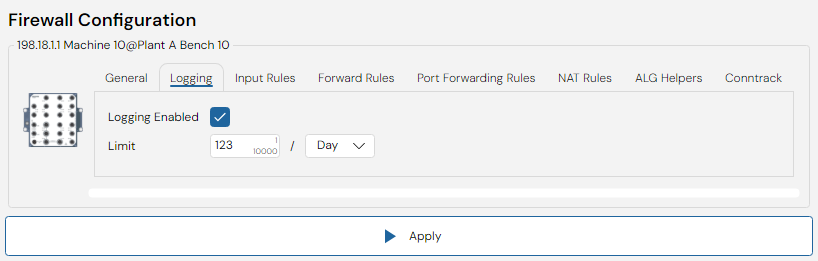

The logging tab allows for enabling or disabling logging of packets that are matched by the firewall rules. The rate limit for logging can also be set, which is the maximum number of logs that can be generated per given time unit.
WeOS 5 devices defaults to unlimited logging, while WeOS 4 devices defaults to 5 logs per second.
The limit should be in the range 1-10000, and the time unit can be set to either second, minute, hour, day, or unlimited.
Configuring logging with no rate limit may lower the security posture of the device by opening up for denial-of-service attacks.
Input Rules

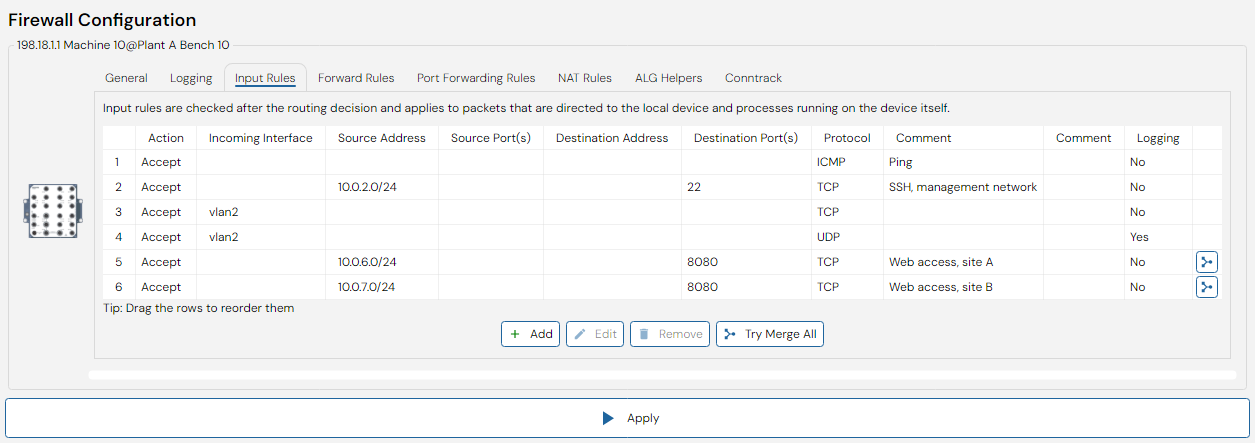

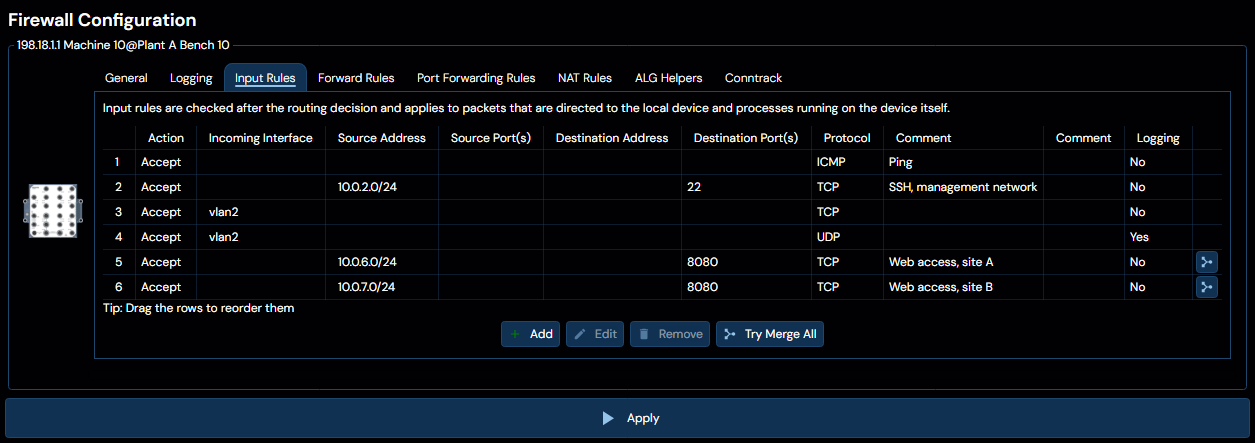

The input rules tab allows for setting rules for incoming packets directed to the device. The rules can be set to either ACCEPT or DROP packets that match the rule.
WeOS 5 defaults with no Input Rules, while WeOS 4 defaults with rules that allow ICMP access to the device.
The input rules are checked after the routing decision and applies to packets that are directed to the local device and processes running on the device itself.
Drag the rows to reorder the rules.
Add Input Rule - WeOS 5

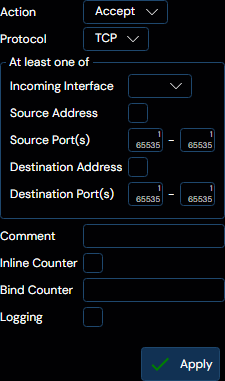

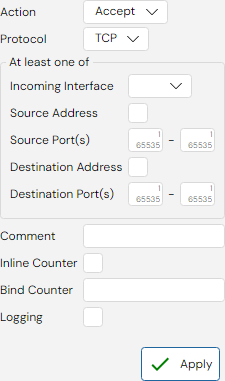

To add a rule to a WeOS 5 device, click the Add button. This will open a modal where the following fields can be set:
| Field | Description | Required | Notes |
|---|---|---|---|
| Action | Accept or drop traffic matching the specified rule | Yes | - |
| Protocol | The protocol type of the IP payload. Typically TCP or UDP but the filtering can also be made to match other protocols such as ICMP and ESP. | Yes | Will affect what fields are available |
| Incoming Interface | The interface where the packet comes in | Yes* | See info section below |
| Source Address | The source IP address of the packet | Yes* | See info section below |
| Source Port(s) | The source port(s) of the packet | Yes* | Only available if Protocol is TCP or UDP. See info section below |
| Destination Address | The destination IP address of the packet | Yes* | See info section below |
| Destination Port(s) | The destination port(s) of the packet | Yes* | Only available if Protocol is TCP or UDP. See info section below |
| Comment | A comment of the rule | No | - |
| Inline Counter | The rule uses a counter that only shows in the raw output. This counter is reset any time the firewall configuration is changed. | No | - |
| Bind Counter | The Counter the rule is assigned to | No | Can only be set if Inline Counter is not checked. If the Counter does not exist, one will be created. |
| Logging | Log traffic matching this rule | No | Logging must be enabled in the Logging tab |
Yes* =
If Protocol is TCP or UDP:
- At least one of
Incoming Interface,Source Address,Destination Address,Source Port(s), orDestination Port(s)must be set.
If Protocol is not TCP or UDP:
- At least one of
Incoming Interface,Source Address, orDestination Addressmust be set.
Add Input Rule - WeOS 4
To add a rule to a WeOS 4 device, click the Add button. This will open a modal where the following fields can be set:
| Field | Description | Required | Notes |
|---|---|---|---|
| Active | Is this rule active? | Yes | - |
| Action | Accept or drop traffic matching the specified rule | Yes | - |
| Protocol | The protocol type of the IP payload. Typically TCP or UDP but the filtering can also be made to match other protocols such as ICMP and ESP. | Yes | Will affect what fields are available |
| Incoming Interface | The interface where the packet comes in | No | - |
| Source Address | The source IP address of the packet | No | - |
| Source Port(s) | The source port(s) of the packet | No | Only available if Protocol is TCP or UDP |
| Destination Port(s) | The destination port(s) of the packet | No | Only available if Protocol is TCP or UDP |
| Logging | Log traffic matching this rule | No | Logging must be enabled in the Logging tab |
Merge Input Rules
Input rules can be merged. If two or more rules could be expressed as a single rule with a broader subnet range, then a button to merge those rules will appear to the right on the relevant rows. When hovering over that button, the rules that will be merged are highligted.
You can also click the "Try Merge All" button to merge all rules at once.
Forward Rules

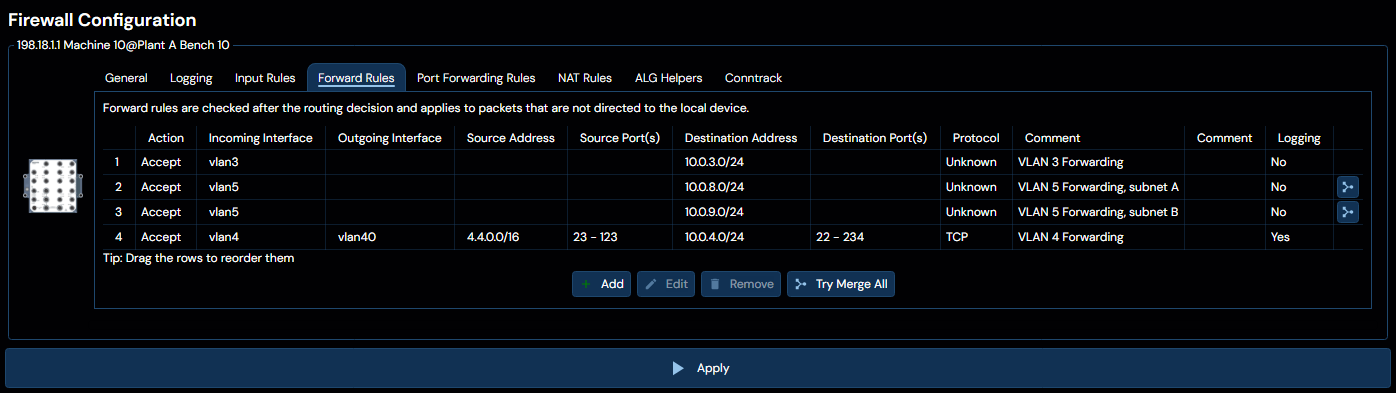

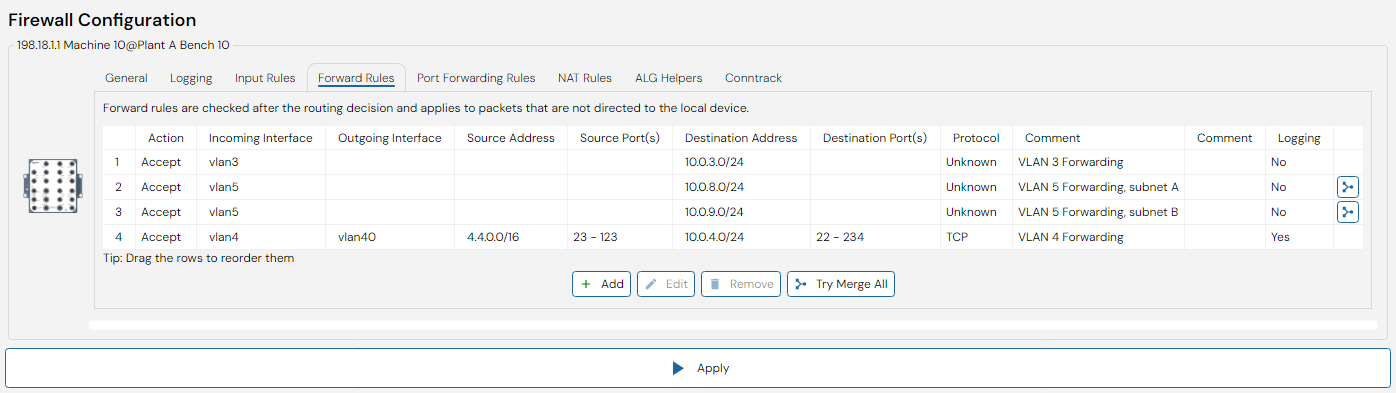

The forward rules tab allows for setting rules for incoming packets not directed to the device. The rules can be set to either ACCEPT or DROP packets that match the rule.
The default is no Forward Rules.
Only available on Extended devices.
The forward rules are checked after the routing decision and applies to packets that are not directed to the local device.
Drag the rows to reorder the rules.

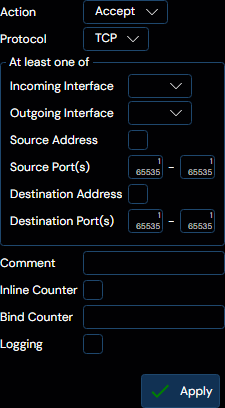

Add Forward Rule - WeOS 5

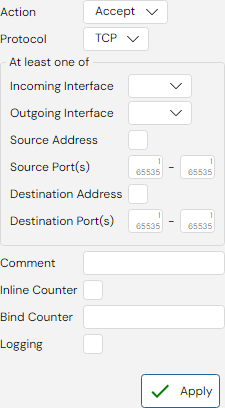

To add a rule to a WeOS 5 device, click the Add button. This will open a modal where the following fields can be set:
| Field | Description | Required | Notes |
|---|---|---|---|
| Action | Accept or drop traffic matching the specified rule | Yes | - |
| Protocol | The protocol type of the IP payload. Typically TCP or UDP but the filtering can also be made to match other protocols such as ICMP and ESP. | Yes | Will affect what fields are available |
| Incoming Interface | The interface where the packet comes in | Yes* | See info section below |
| Outgoing Interface | The interface where the packet is sent out | Yes* | See info section below |
| Source Address | The source IP address of the packet | Yes* | See info section below |
| Source Port(s) | The source port(s) of the packet | Yes* | Only available if Protocol is TCP or UDP. See info section below |
| Destination Address | The destination IP address of the packet | Yes* | See info section below |
| Destination Port(s) | The destination port(s) of the packet | Yes* | Only available if Protocol is TCP or UDP. See info section below |
| Comment | A comment of the rule | No | - |
| Inline Counter | The rule uses a counter that only shows in the raw output. This counter is reset any time the firewall configuration is changed. | No | - |
| Bind Counter | The Counter the rule is assigned to | No | Can only be set if Inline Counter is not checked. If the Counter does not exist, one will be created. |
| Logging | Log traffic matching this rule | No | Logging must be enabled in the Logging tab |
Yes* =
If Protocol is TCP or UDP:
- At least one of
Incoming Interface,Outgoing Interface,Source Address,Destination Address,Source Port(s), orDestination Port(s)must be set.
If Protocol is not TCP or UDP:
- At least one of
Incoming Interface,Outgoing Interface,Source Address, orDestination Addressmust be set.

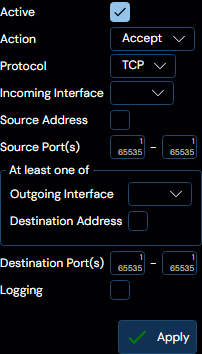

Add Forward Rule - WeOS 4

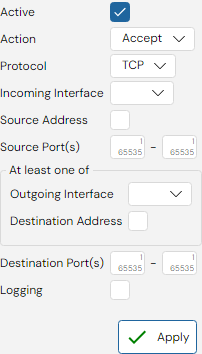

To add a rule to a WeOS 4 device, click the Add button. This will open a modal where the following fields can be set:
| Field | Description | Required | Notes |
|---|---|---|---|
| Active | Is this rule active? | Yes | - |
| Action | Accept or drop traffic matching the specified rule | Yes | - |
| Protocol | The protocol type of the IP payload. Typically TCP or UDP but the filtering can also be made to match other protocols such as ICMP and ESP. | Yes | Will affect what fields are available |
| Incoming Interface | The interface where the packet comes in | No | - |
| Source Address | The source IP address of the packet | No | - |
| Source Port(s) | The source port(s) of the packet | No | Only available if Protocol is TCP or UDP |
| Outgoing Interface | The interface where the packet is sent out | Yes* | See info section below |
| Destination Address | The destination IP address of the packet | Yes* | See info section below |
| Destination Port(s) | The destination port(s) of the packet | No | Only available if Protocol is TCP or UDP |
| Logging | Log traffic matching this rule | No | Logging must be enabled in the Logging tab |
Yes* = At least one of Outgoing Interface or Destination Address must be set.
Merge Forward Rules
Forward rules can be merged. If two or more rules could be expressed as a single rule with a broader subnet range, then a button to merge those rules will appear to the right on the relevant rows. When hovering over that button, the rules that will be merged are highligted.
You can also click the "Try Merge All" button to merge all rules at once.
DPI Filter Rules
Deep Packet Inspection (DPI) rules work similar to regular Packet Filter (Input/Forward) rules, but look further into the payload when deciding what packets to allow or drop.
The default is no DPI Filter Rules.
Only avaible for Extended WeOS 4 devices.
Drag the rows to reorder the rules.
Add DPI Filter Rule

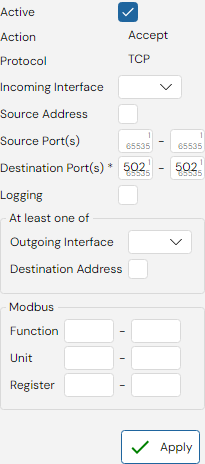

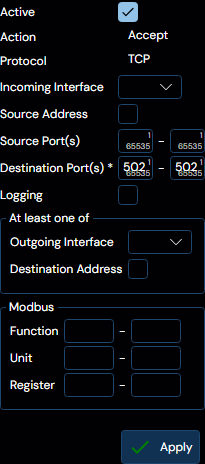

To add a rule to a WeOS 4 device, click the Add button. This will open a modal where the following fields can be set:
| Field | Description | Required | Notes |
|---|---|---|---|
| Active | Is this rule active? | Yes | - |
| Action | Accept or drop traffic matching the specified rule | Yes | Only Accept is allowed |
| Protocol | The protocol type of the IP payload | Yes | Only TCP is allowed |
| Incoming Interface | The interface where the packet comes in | No | - |
| Source Address | The source IP address of the packet | No | - |
| Source Port(s) | The source port(s) of the packet | No | - |
| Destination Port(s) | The destination port(s) of the packet | No | Default is 502 |
| Logging | Log traffic matching this rule | No | Logging must be enabled in the Logging tab |
| Outgoing Interface | The interface where the packet is sent out | Yes* | See info section below |
| Destination Address | The destination IP address of the packet | Yes* | See info section below |
| Modbus Function | DPI can filter on Modbus function codes. A range of codes can be specified. | No | - |
| Modbus Unit | DPI can filter on Modbus unit ID. More than one Modbus device may sit behind the same IP address, use this parameter to specify a single device. | No | - |
| Modbus Register | DPI can filter on Modbus register addresses. Note that the meaning of this filter varies depending on the function code. | No | - |
Yes* = At least one of Outgoing Interface or Destination Address must be set.
Port Forwarding Rules
The port forwarding rules tab allows for exposing internal devices via specific ports. The rules can be set to either ACCEPT or DROP packets that match the rule.
The default is no Port Forwarding Rules.
Only available on Extended devices.
Drag the rows to reorder the rules.
Add Port Forwarding Rule - WeOS 5

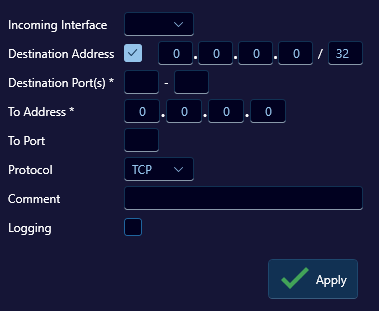

To add a rule to a WeOS 5 device, click the Add button. This will open a modal where the following fields can be set:
| Field | Description | Required | Notes |
|---|---|---|---|
| Incoming Interface | The interface where the packet comes in | No | - |
| Destination Address | The destination IP address of the packet | No | - |
| Destination Port(s) | The destination port(s) of the packet | Yes | - |
| To Address | The destination address where the packets are to be forwarded | Yes | - |
| To Port | The destination port where the packets are to be forwarded | Yes | - |
| Protocol | The protocol type of the IP payload | Yes | TCP or UDP |
| Comment | A comment of the rule | No | - |
| Logging | Log traffic matching this rule | No | Logging must be enabled in the Logging tab |
Add Port Forwarding Rule - WeOS 4
To add a rule to a WeOS 4 device, click the Add button. This will open a modal where the following fields can be set:
| Field | Description | Required | Notes |
|---|---|---|---|
| Incoming Interface | The interface where the packet comes in | Yes | - |
| Destination Address | The destination IP address of the packet | No | - |
| Destination Port(s) | The destination port(s) of the packet | Yes | - |
| To Address | The destination address where the packets are to be forwarded | Yes | - |
| To Port | The destination port where the packets are to be forwarded | Yes | - |
| Protocol | The protocol type of the IP payload | Yes | TCP, UDP, or Any |
| Logging | Log traffic matching this rule | No | Logging must be enabled in the Logging tab |
NAT Rules
Network Address Translation (NAT) can be used to hide private subnets behind a single public IP address.
The default is no NAT Rules.
Only available on Extended devices.
Drag the rows to reorder the rules.
Add NAT Rule - WeOS 5
To add a rule to a WeOS 5 device, click the Add button. This will open a modal where the following fields can be set:
| Field | Description | Required | Notes |
|---|---|---|---|
| Type | The type of NAT rule | Yes | Only NAPT is supported on WeOS 5 |
| Outgoing Interface | The interface where the packet is sent out | Yes | - |
| Source Address | The source IP address of the packet | No | - |
| Comment | A comment of the rule | No | - |
| Logging | Log traffic matching this rule | No | Logging must be enabled in the Logging tab |
Add NAT Rule - WeOS 4
To add a rule to a WeOS 4 device, click the Add button. This will open a modal where the following fields can be set:
NAPT:
| Field | Description | Required | Notes |
|---|---|---|---|
| Active | Is this rule active? | Yes | - |
| Type | The type of NAT rule | Yes | NAPT or 1:1, will change what fields are available. |
| Incoming Interface | The interface where the packet comes in | No | - |
| Source Address | The source IP address of the packet | No | - |
| Outgoing Interface | The interface where the packet is sent out | Yes | - |
| Automatic Filter Rule | If set, an automatic (invisible) packet filter rule will be created in the forward filtering chain allowing packets matching this NAT rule. Do not set this option if you want to manage forwarding rules yourself. | No | - |
| Logging | Log traffic matching this rule | No | Logging must be enabled in the Logging tab |

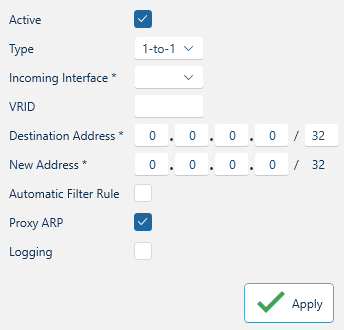

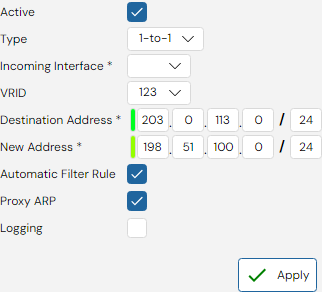

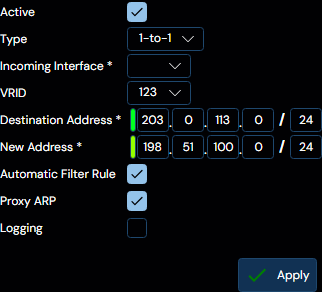

1-to-1:
| Field | Description | Required | Notes |
|---|---|---|---|
| Active | Is this rule active? | Yes | - |
| Type | The type of NAT rule | Yes | NAPT or 1:1, will change what fields are available. |
| Incoming Interface | The interface where the packet comes in | Yes | - |
| VRID | Virtual Router ID | No | Make sure the VRID exists in the device, or it will not 'stick' when applying the NAT Rule |
| Destination Address | Packets arriving on the inbound interface and has the IP destination within this subnet will be NATed | Yes | - |
| New Address | The new destination IP network for the NAT | Yes | The subnet size of Destination Address and New Address must be the same |
| Automatic Filter Rule | If set, an automatic (invisible) packet filter rule will be created in the forward filtering chain allowing packets matching this NAT rule. Do not set this option if you want to manage forwarding rules yourself. | No | - |
| Proxy ARP | WeOS 1-to-1 NAT includes a proxy ARP mechanism, which makes the WeOS unit answer on ARP requests for the external network (Destination Address). The router will only answer on ARP requests originating from the network connected to the Incoming Interface. This makes it possible to use 1-to-1 NAT to pick up traffic to a specific subnet from within a larger network without the need of explicit routing settings. | No | - |
| Logging | Log traffic matching this rule | No | Logging must be enabled in the Logging tab |
Modifier Rules
Changes the DSCP bits in the IP header for routed traffic.
The default is no Modifier Rules.
Only avaible for Extended WeOS 4 devices.
Drag the rows to reorder the rules.
Add Modifier Rule

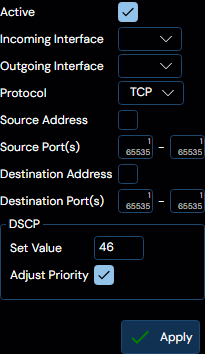

To add a rule to a WeOS 4 device, click the Add button. This will open a modal where the following fields can be set:
| Field | Description | Required | Notes |
|---|---|---|---|
| Active | Is this rule active? | Yes | - |
| Incoming Interface | The interface where the packet comes in | No | - |
| Outgoing Interface | The interface where the packet is sent out | No | - |
| Protocol | The protocol type of the IP payload. Typically TCP or UDP but the filtering can also be made to match other protocols such as ICMP and ESP. | Yes | - |
| Source Address | The source IP address of the packet | No | - |
| Source Port(s) | The source port(s) of the packet | No | - |
| Destination Address | The destination IP address of the packet | No | - |
| Destination Port(s) | The destination port(s) of the packet | No | - |
| DSCP Set Value | The DSCP value to be set for packets matching this rule | Yes | Valid values 0-63 |
| DSCP Adjust Priority | Indicates if the modified DSCP value should be used for switch internal prioritising and applied to VLAN-priority on tagged packets | No | - |
ALG Helpers
Application Layer Gateway (ALG) helpers are shorthand rules for specific protocols.
The default is no ALG Helpers.
Only available on Extended devices.

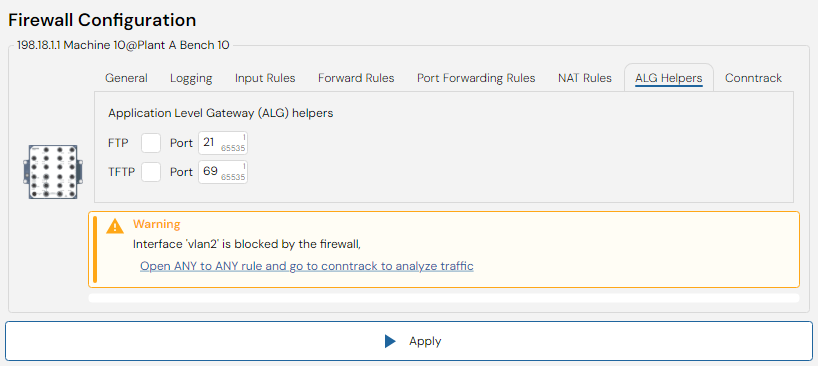

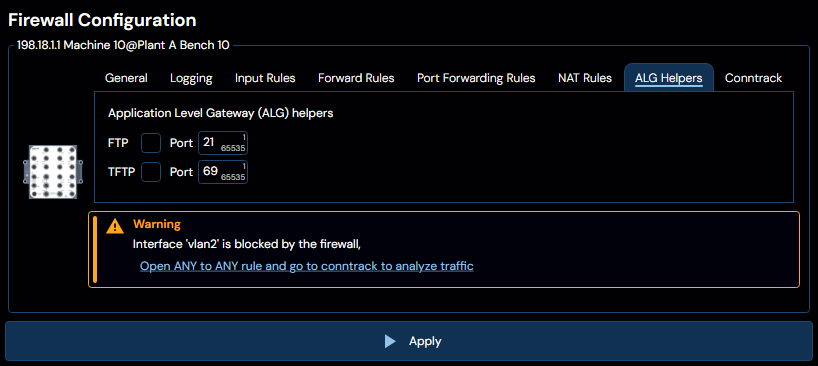

FTP and TFTP are the only ALG Helpers available for WeOS 5 devices.
WeOS 4
The following ALG Helpers are available for WeOS 4 devices:
- FTP
- H.323
- IRC
- PPTP
- SIP
- TFTP
Conntrack
Conntrack maintains information about all incoming and outgoing connections.
For WeOS 5 devices, the firewall must be enabled to be able to access the conntrack.
Enable the firewall in the General tab and press Apply.
Click on the column headers to sort the table by that column.
| Field | Description |
|---|---|
| Timestamp | Timestamp of when the conntrack entry was read. This is NOT a timestamp of when the connection was made. Some entries stay in the conntrack for a long time. |
| Protocol | The IP protocol of the conntrack entry |
| Source Address | The source IP address, original direction |
| Source Port | The source port, original direction |
| Source Vlan | The source vlan, original direction |
| Destination Address | The destination IP address, original direction |
| Destination Port | The destination port, original direction |
| Destination Vlan | The destination vlan, original direction |
Vlan is only shown if WeConfig is able to derive it from the corresponding IP address (otherwise this field will be empty)
Create rule from contrack entry
Some conntrack entries has a green arrow next to them. Click that arrow to create a new rule based on the conntrack entry.
The generated rule will be added to the Input Rules or Forward Rules tab, depending on the direction of the conntrack entry. The contents of this rule will be copied from the conntrack entry, with the fields included being determined by the checked boxes in the table header. If a box is checked, the corresponding field will be included in the generated rule.
It is then up to you to edit the rule to your liking.
The Add All button can be used to add all generated rules at once.
The generated rule is not applied until you press to Apply the firewall configuration.
Reply
Conntrack entries also have "Reply" fields. These are commonly just the same as the original fields, but with the direction reversed.
Example:
Original Source: 198.18.1.99:60071
Original Destination: 198.18.1.14:80
Reply Source: 198.18.1.14:80
Reply Destination: 198.18.1.99:60071
When the Reply is just a mirror of the original, it is not shown in the Conntrack table, to reduce clutter.

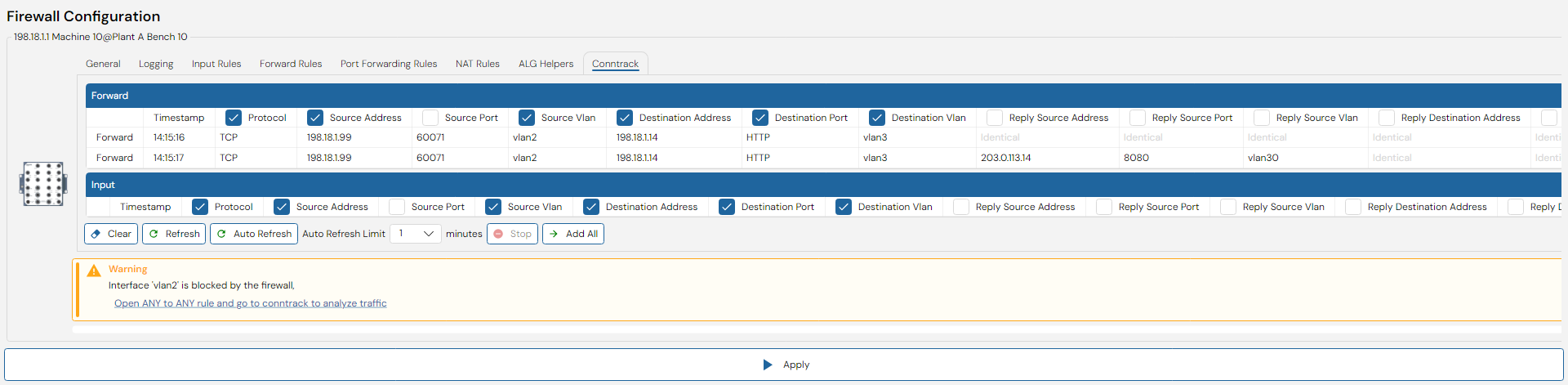

But when there are entries with different original and reply addresses/ports, the Reply fields are shown.
| Field | Description |
|---|---|
| Reply Source Address | The source IP address, reply direction |
| Reply Source Port | The source port, reply direction |
| Reply Source Vlan | The source vlan, reply direction |
| Reply Destination Address | The destination IP address, reply direction |
| Reply Destination Port | The destination port, reply direction |
| Reply Destination Vlan | The destination vlan, reply direction |
If the Reply field is a mirror of the original, it is shown as "Identical", this way you can quickly see which entries are mirrored and which are not.
Vlan is only shown if WeConfig is able to derive it from the corresponding IP address (otherwise this field will be empty)
Refreshing the Conntrack

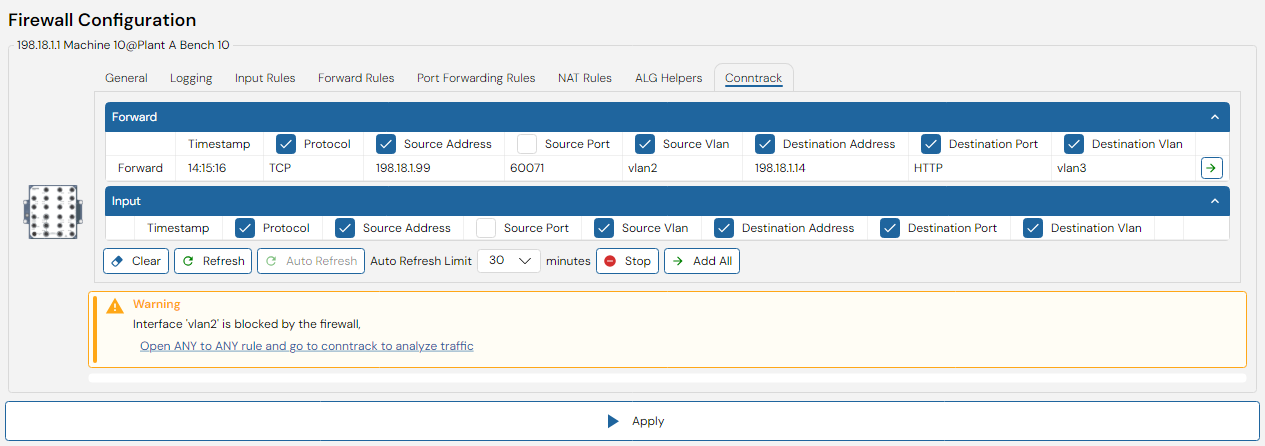

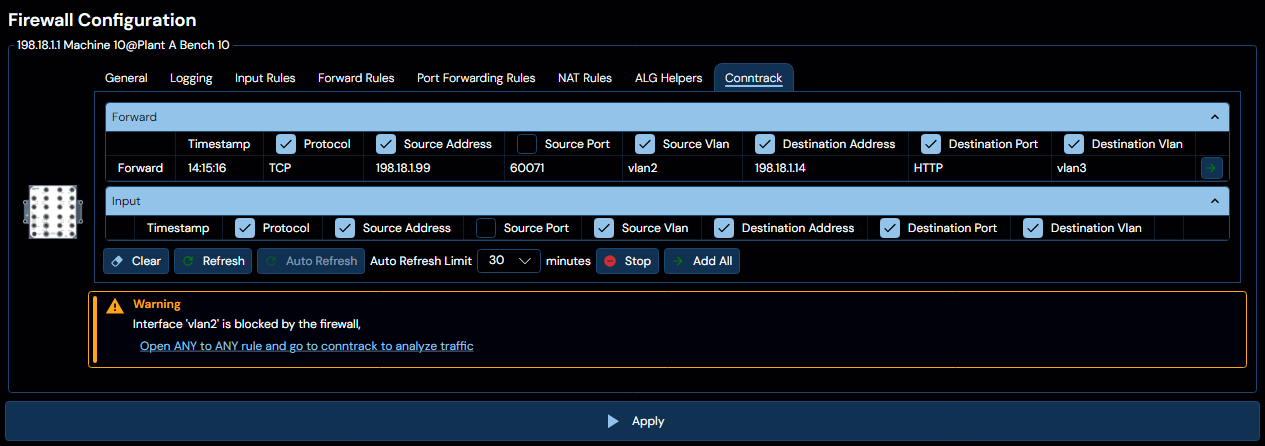

Below the Conntrack table, there are some buttons used to refresh the conntrack table.
Clear
The Clear button clears the conntrack table in WeConfig.
Only clears the table in WeConfig, not on the device.
Refresh
The Refresh button refreshes the conntrack table in WeConfig. It will read the current conntrack table from the device and update the table in WeConfig.
Auto Refresh
The Auto Refresh button will automatically refresh the conntrack table in WeConfig every second until the given time limit is reached. This is useful for collecting the conntrack table over a period of time.
If you deselect the device, or leave the Firewall tab, the Auto Refresh will stop.
Stop
The Stop button will manually stop the Auto Refresh.
