High-available Seamless Redudancy / Parallel Redundancy Protocol (HSR/PRP)
HSR/PRP is a task that allows for configuration of HSR/PRP redundancy in the network.
High-Availability Seamless Redundancy (HSR) and Parallel Redundancy Protocol (PRP) provides seamless failover on link failure. Both build on the same idea of duplicating traffic and can be coupled with each other.
Read more about HSR/PRP in the WeOS documentation.
info
HSR/PRP is only available for RedBox
New
To create a new HSR/PRP ring, click the New button.
Context

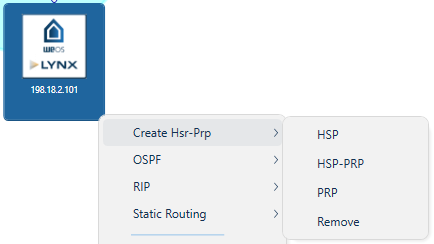

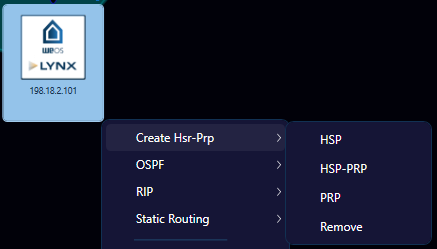

You can also setup HSR/PRP from the context menu.
This will create a default HSR/PRP instance with the following properties:
warning
This will override any existing HSR/PRP configuration on the device.
HSR
| Field | Value |
|---|---|
| Enabled | True |
| Type | HSP |
| Ring ID | 1 |
| Mode | H |
| Supervision Frames | True |
PRP
| Field | Value |
|---|---|
| Enabled | True |
| Type | PRP |
| Ring ID | 1 |
| Supervision Frames | True |
HSP-PRP
| Field | Value |
|---|---|
| Enabled | True |
| Type | PRP |
| Ring ID | 1 |
| Mode | H |
| Supervision Frames | True |
| Pairing PRP Id | 1 |
| Pairing LAN Id | A |

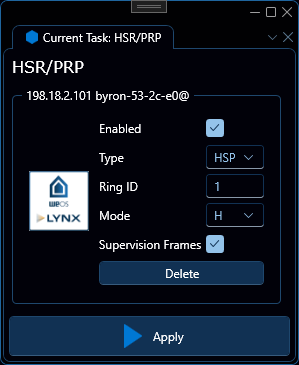

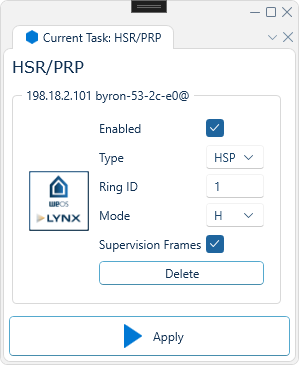

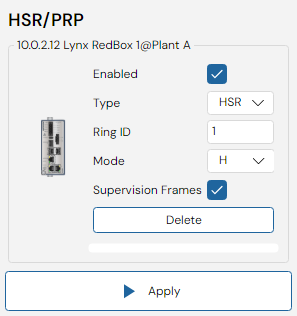

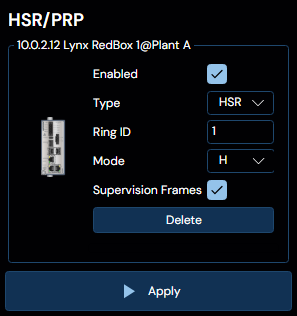

HSR
| Field | Description |
|---|---|
| Enabled | Enable or disable this HSR instance |
| Type | Change the type of this instance, this will also change what fields are available |
| Ring ID | Id of this HSR instance |
| Mode | The operating mode for HSR. Can be either H or N |
| Supervision Frames | Enable/Disable supervision frames |
note
Modes:
- H: HSR-tagged mode, the unit inserts HSR tag and forwards traffic.
- N: No forwarding operational mode, just like mode H, except that the unit does not forward traffic from port to port. Intended for testing purposes only.

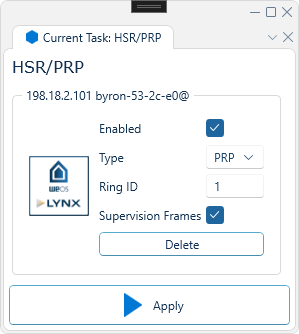

PRP
| Field | Description |
|---|---|
| Enabled | Enable or disable this PRP instance |
| Type | Change the type of this instance, this will also change what fields are available |
| Ring ID | Id of this PRP instance |
| Supervision Frames | Enable/Disable supervision frames |

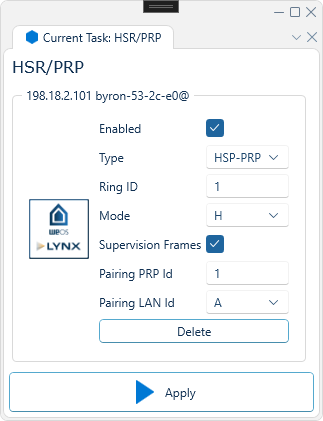

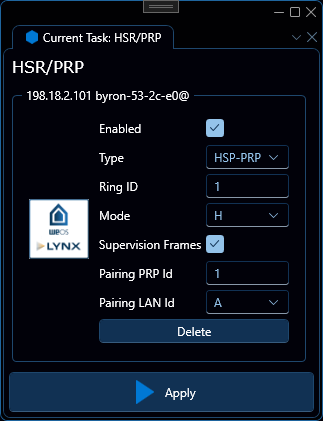

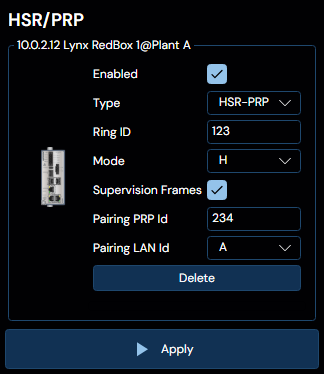

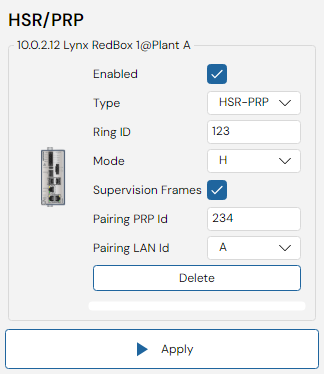

HSR/PRP
| Field | Description |
|---|---|
| Enabled | Enable or disable this HSR/PPR instance |
| Type | Change the type of this instance, this will also change what fields are available |
| Ring ID | Id of this HSR/PPR instance |
| Mode | The operating mode for HSR. Can be either H or N |
| Supervision Frames | Enable/Disable supervision frames |
| Pairing PRP Id | NetId of the PRP network attached to the interlink. |
| Pairing LAN Id | LanId of the PRP network attached to the interlink. |
note
Modes:
- H: HSR-tagged mode, the unit inserts HSR tag and forwards traffic.
- N: No forwarding operational mode, just like mode H, except that the unit does not forward traffic from port to port. Intended for testing purposes only.
info
RedBoxes connected to the same PRP network should have the same Pairing PRP Id (NetId)
