Port Monitoring

Port Monitoring is a task that allows for configuration of Port monitoring or mirroring; the act of observing traffic on a specified source port, or multiple source ports, and duplicating the traffic to another provided destination port.

Interface components

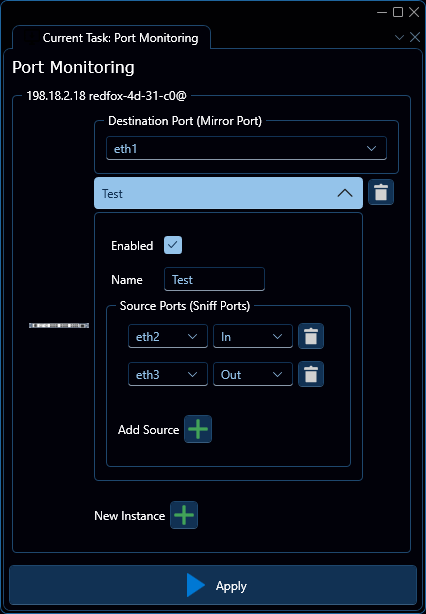

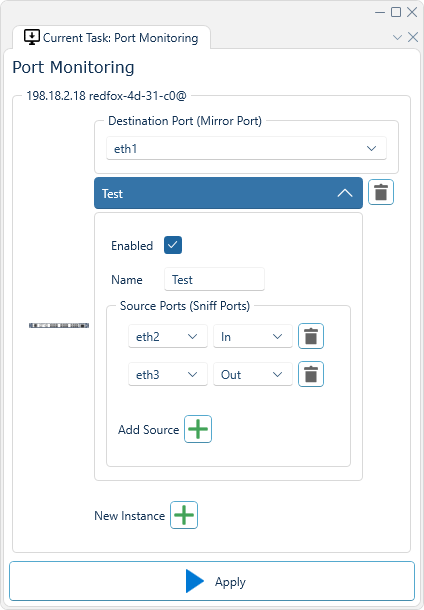

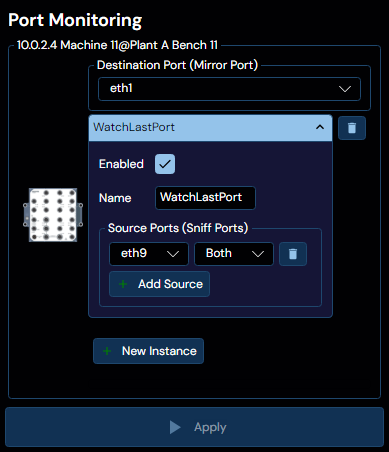

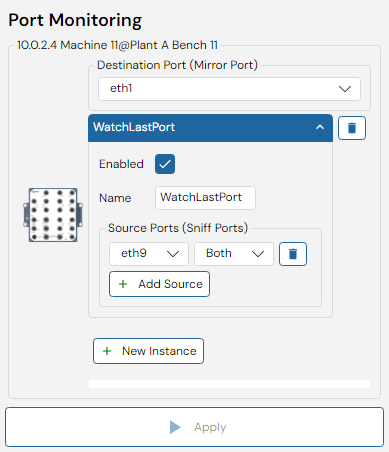

WeOS 5

On WeOS 5, you can select one destination port (The Mirror Port; the port to which the traffic will be duplicated) and one or more instances. Each instance can be enabled or disabled, can be given a name, and can have one or more source ports (The Sniff Ports; the ports whose traffic will be duplicated to the Mirror Port) associated with it.

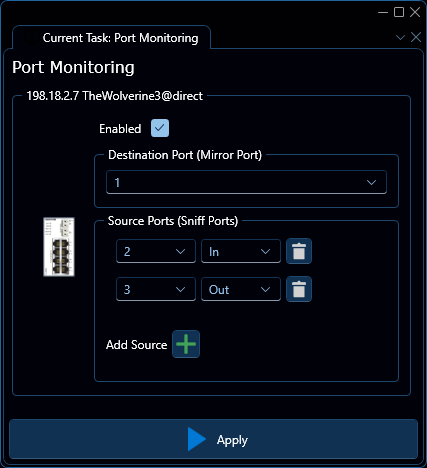

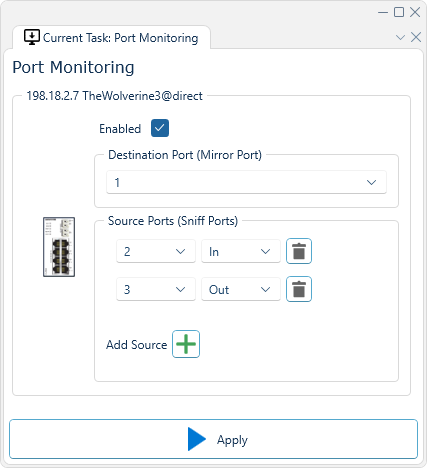

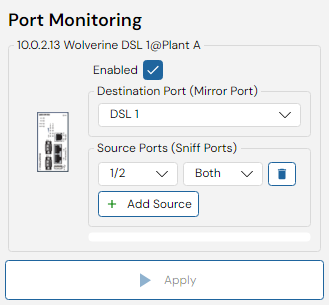

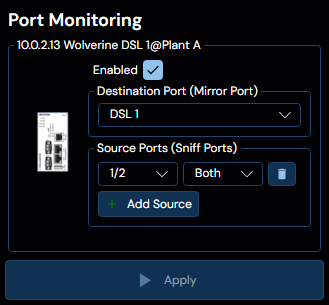

WeOS 4

On WeOS 4, you only have one instance, which can be enabled or disabled. You can also select one destination port (The Mirror Port; the port to which the traffic will be duplicated) and one or more source ports (The Sniff Ports; the ports whose traffic will be duplicated to the Mirror Port) associated with it.
