Properties

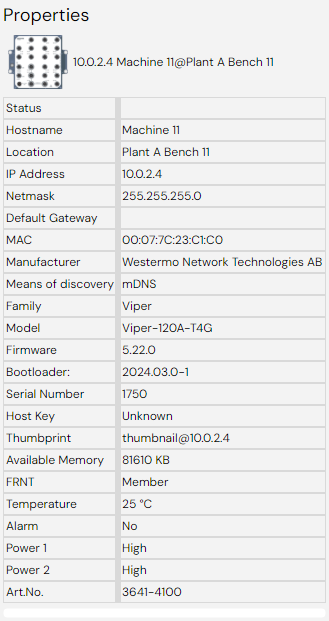

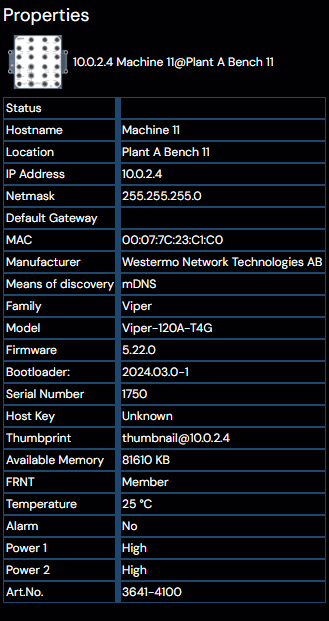

This panel contains a number of properties that WeConfig knows about the device. It is updated dynamically whenever WeConfig's knowledge of the specified properties changes. The following properties are available:
| Property | Description |
|---|---|
| Status | Last reported status by WeConfig regarding this device |
| Hostname | System hostname of the device |
| Location | System location of the device |
| IP Address | Primary management IP address associated with the device |
| Netmask | The netmask associated with the primary management IP address |
| Default Gateway | Default gateway configured to the device, if any |
| MAC | MAC address associated with the device, or responding NIC, if no MAC address for the device itself is known |
| Manufacturer | Organization identified by the MAC address of the device / NIC |
| Means of Discovery | A note on how WeConfig discovered the device, typically listed either as a protocol, i.e Ping, or an address plus protocol, i.e as in the picture 169.254.145.82 [IPConfig] which, in the latter case, indicates that it was discovered using the IPConfig protocol from the address 169.254.145.82. |
| Family | Identified device product family, if any |
| Model | Identified specific device model, if any |
| Firmware | The identified primary firmware version running on the device |
| Revision | The identified Hardware Revision, if any, primarily relevant for xRD devices |
| Backup firmware | The identified secondary firmware version on the device, if any |
| Bootloader | The identified bootloader version running on the device, if any |
| Serial Number | The serial number reported by the device |
| Host Key | SSH host key associated with trying to access the device, used to help detect MITM-attacks, and as a possible source of device identity |
| Thumbprint | TCP-connection certificate thumbprint identified, if any, used as a possible source of device identity |
| Available Memory | Last reported available memory on the device |
| Load Average | Average CPU load over the last minute, five minutes and fifteen minutes respectively |
| FRNT | FRNT ring status of the device, either nothing, member or focal point |
| Temperature | Last reported device Temperature |
| Uptime | Last reported device uptime. |
| Alarm | If the device has any outgoing alarms that WeConfig can detect |
| Power1 | Last qualitative reporting on Power into slot 1 from the device |
| Power2 | Last qualitative reporting on Power into slot 2 from the device |
| Art. No. | Reported Article number of the device |
