Port Protection
Port protection is is a task for reviewing MAC filter / 802.1X port protection status and enablding/disabling ports as well as configuring link-up alarm triggers.
Interface components

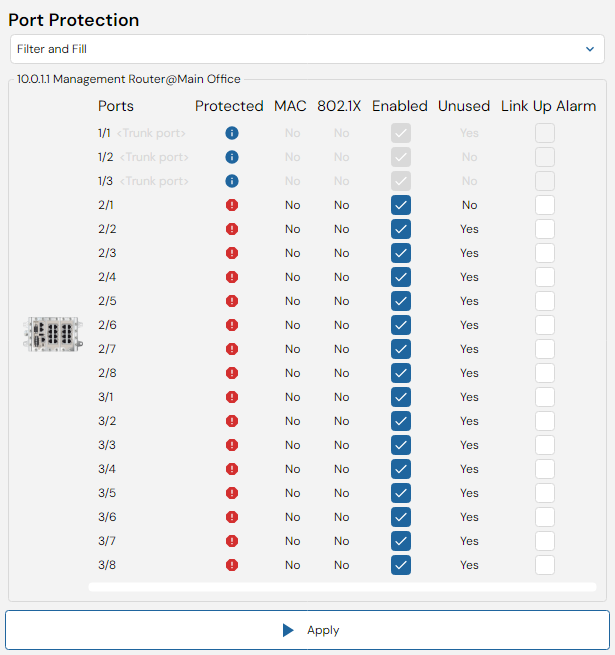

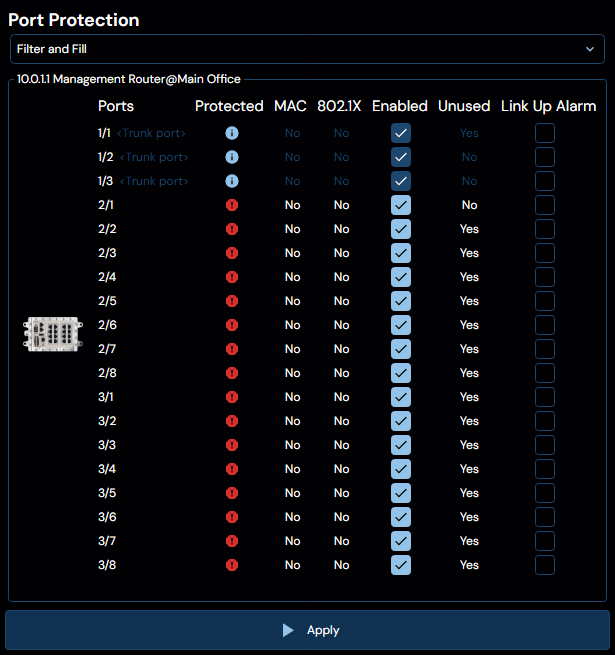

As can be seen in the interface depicted above, this panel will present a list of selected devices, where each device contains a matrix of ports with 7 columns, as follows:
| Column | Description |
|---|---|
| Ports | The Port name, as well as an indicator if it is a trunk port or not |
| Protected | Whether or not this port is considered protected |
| MAC | Whether this port has any MAC filter configured |
| 802.1X | Whether any 802.1X port protection has been configured on this port |
| Enabled | Whether or not this port is enabled |
| Unused | Whether or not this port is currently in use |
| Link Up Alarm | If a Link Up alarm is configured on this port |
